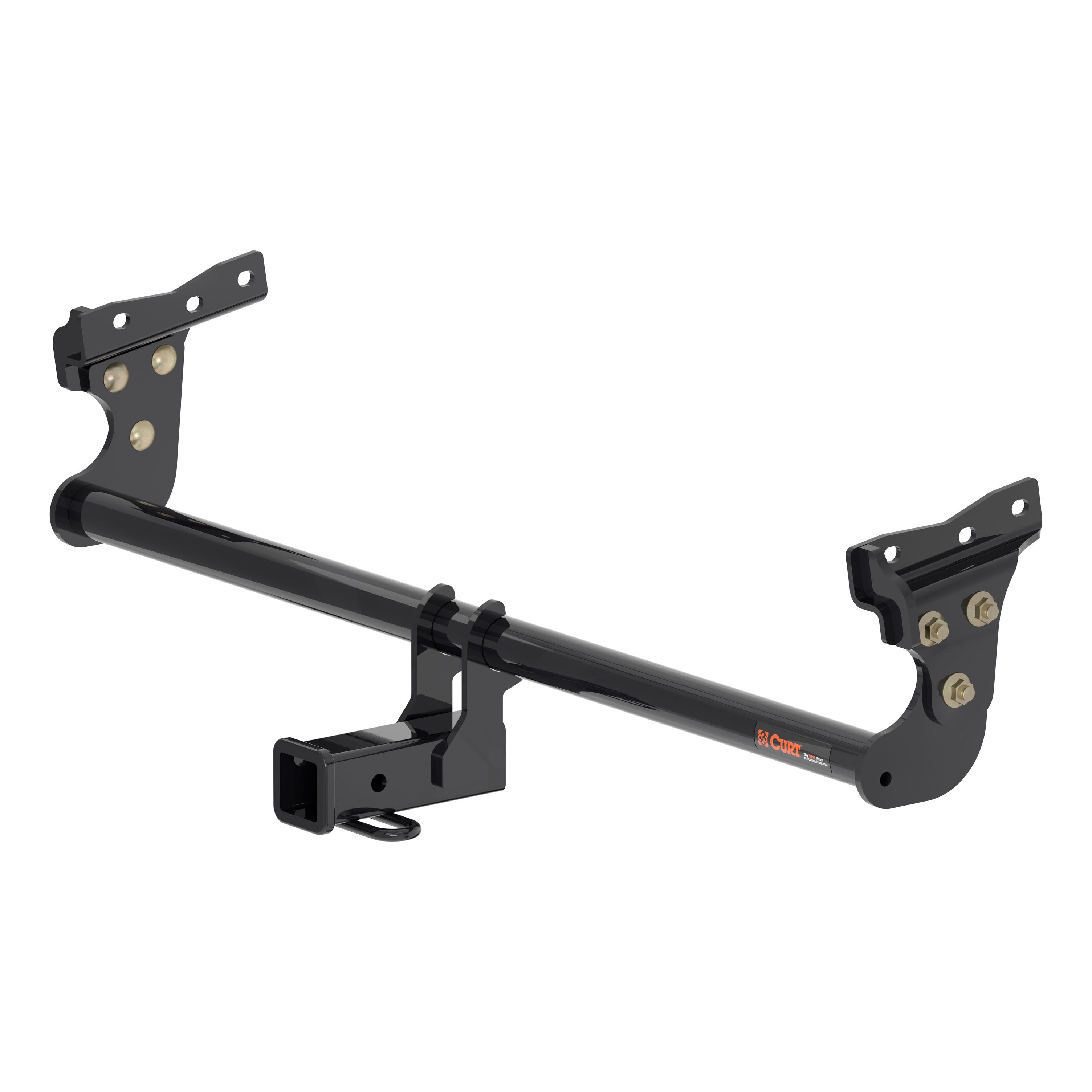

CURT 13520 Class 3 Trailer Hitch 2" Receiver Select Hyundai Ioniq 5

Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Hyundai Ioniq 5 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 2,500 lbs. GTW and 250 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.

• Made in USA (may include imported hardware)
• Class 3 Trailer Hitch, 2" Receiver, Select Hyundai Ioniq 5
• Rated to 2,500 lbs. gross trailer weight and 250 lbs. tongue weight
• Engineered with a vehicle-specific design for a custom fit
• Concealed main body for OE look and seamless integration with the vehicle
• Tested for safety in accordance with SAE J684
• Precisely welded for superior strength and fit
• Protected by a durable high-gloss black powder coat finish
• Co-cured in a rust-resistant liquid A-coat, inside and out
• Equipped with an open-back receiver for easy cleaning
• Limited lifetime warranty (one-year finish, one-year parts)
• Made in USA (may include imported hardware)

Attributes:

• GTIN: 00612314135202
• Brand Name: CURT
• Box Height in Inches - XA: 13
• Box Length in Inches - XA: 46
• Box Width in Inches - XA: 13
• Class ID: 1
• Container Cases Qty - XA: 0
• Container Pallet Qty - XA: 0
• Container Unit Qty - XA: 0
• Container Volume Cubic Feet - XA: 0.00000
• Container Volume Cubic Meter - XA: 0.00000
• Container Weight KG - XA: 0
• Container Weight Lbs - XA: 0
• Finish - XA: GLOSS BLACK POWDER COAT
• Item Class - XA: MFH
• Item Height - XA: 11.930
• Item Length - XA: 45.250
• Item Width - XA: 11.660
• Main Body Shape: Round
• Master Case Height Inches - XA: 0.000
• Master Case Inner Pack Qty - XA: 0
• Master Case ITF14: 0
• Master Case ITF14 - XA: 0
• Master Case Length Inches - XA: 0.000
• Master Case Qty - XA: 0
• Master Case Volume Cubic Feet - XA: 0.00000
• Master Case Weight Lbs - XA: 0.000
• Master Case Width Inches - XA: 0.000
• Material - XA: Carbon Steel
• Mount Type Description - XA: Not Applicable
• Pallet Case Per - XA: 0
• Pallet Case Per Layer - XA: 0
• Pallet Cases Per - XA: 0
• Pallet Cases Per Layer - XA: 0
• Pallet Layer of Cases - XA: 0
• Pallet Total Height Inches - XA: 0.000
• Pallet Total Weight Per - XA: 0.000
• Parcel Allowed - XA: Yes
• Price Code - XA: 53
• Product Weight - XA: 31.000
• Rate Class - XA: 125.0
• Receiver Tube Size: 2 IN
• Retail Height - XA: 13.000
• Retail Length - XA: 46.000
• Retail Width - XA: 13.000
• Sales Family Code - XA: HITCH
• Sales Family Description - XA: HITCH
• Sales Group Description - XA: CL 3
• Shipping Weight - XA: 37.000
• Side Application Type Description - XA: Not Applicable
• Tariff 301 - XA: No
• Tongue Weight (TW): 250 LBS
• Truckload Cases Qty - XA: 0
• Truckload Pallets Qty - XA: 0
• Truckload Units Qty - XA: 0
• Truckload Volume Cubic Feet - XA: 0.00000
• Truckload Weight - XA: 0
• Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
• Weight Carrying Capacity (WC): 2,500 LBS

Extended Information:

• Country of Origin: United States
• Life Cycle Status:

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 46.0000 x 13.0000 x 13.0000 inches
• Weight: 37.0000 lb
